추가탑재장치

  • 싱글빔 이미지 소나

  • 멀티빔 이미지 소나

  • 프로파일링 소나

  • 초음파두께측정기

  • 수중클리닝 모듈

  • DVL

  • USBL

  • 메니퓰레이터

  • 수중 GPS

  • 방식측정기

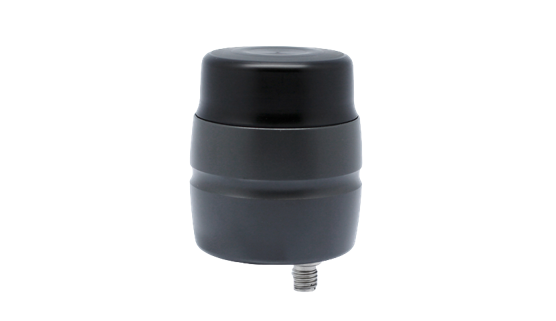

Singlebeam
Imaging Sonar
싱글빔 이미지 소나

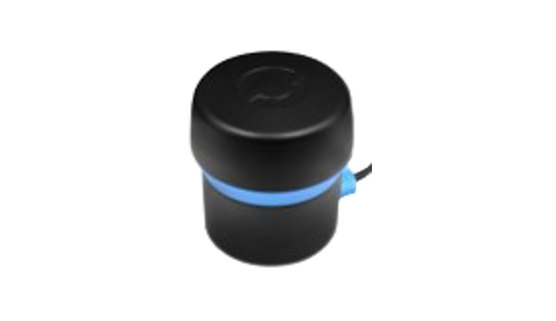

Ping360
Scanning Sector : Variable up to 360°
Frequency : 720kHz
Beam Width : 2°H, 25°V
Range : 0.75~50m
MRS900s
Pulse Type : Chirp & CW (selectable)
Frequency : 900kHz
Beam Width : 2°H, 25°V (+/-3dB) Fan
Range : max 60m

Multibeam
Imaging Sonar
멀티빔 이미지 소나

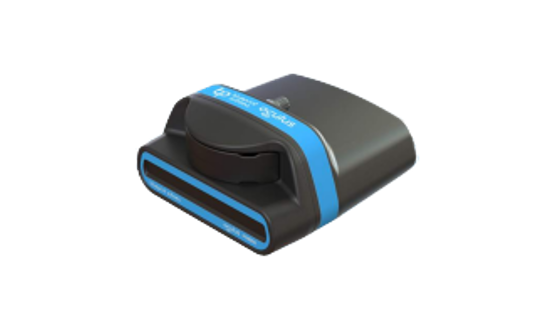

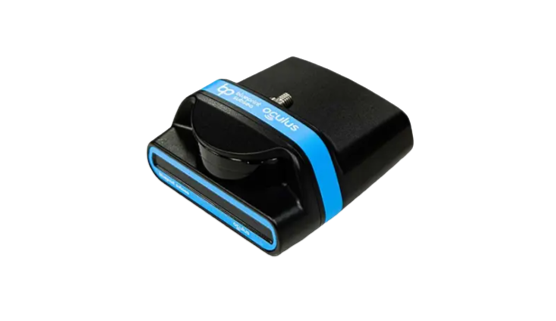

M750D
Frequency : 750kHz/1.2MHz (Dual)
Range : 120m/40m
Range Resolution : 4mm/2.5mm
Horizontal Aperture : 130°/130°
Number of Beams : max 512
M1200
Range (max) : 30m (LF) / 10m (HF)
Range (max) : 0.1m
Range Resolution : 2.5mm (LF) / 2.5mm (HF)
Horizontal Aperture : 130° (LF) / 60° (HF)
Number of Beams : max 512

Profiling Sonar
프로파일링 소나

Singlebeam Profiling Sonar 831L
Frequency : 2.25MHz
Transducer Beam Width : 1.4° conical
Range scales : 0.125 ~ 6m
Range Resolution : 0.5mm
Step Size : 0.9°
Multibeam Profiling Sonar DT360Xi
Frequency : 2.25MHz
Transducer Beam Width : H360° V 0.7°
Range scales : 0.5~10m
Range Resolution : 1/500 or 1/1000 of Range
Step Size : 0.9

Underwater
Positioning System
수중위치측정기

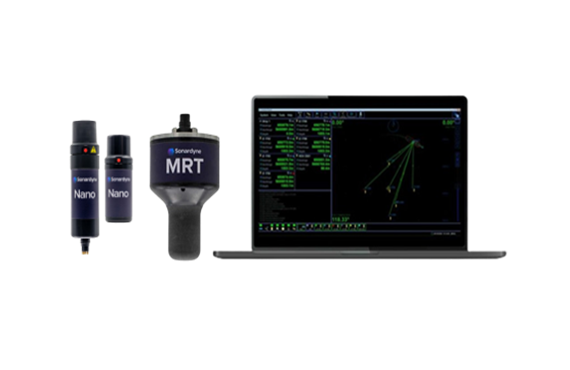

Micro Ranger (USBL)
Frequency : 19~34kHz
Range : max 995m
Accuracy :
(System)〈5% of slant range 1 DRMS
Battery Life : >10 hours at 1 Hz ping rate

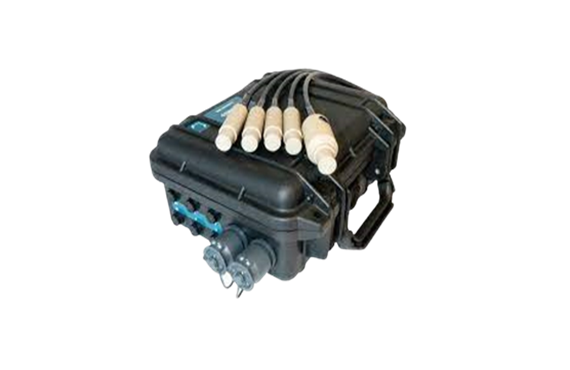

Underwater GPS (SBL)
Frequency : 31.25~250kHz
Range : 100 or 300m radius
Accuracy :
Horizontal range 〈 0.2%
Horizontal range 〈 1deg
Vertical (depth) 〈 1%
Directivity : Omnidirectional (360 degrees)

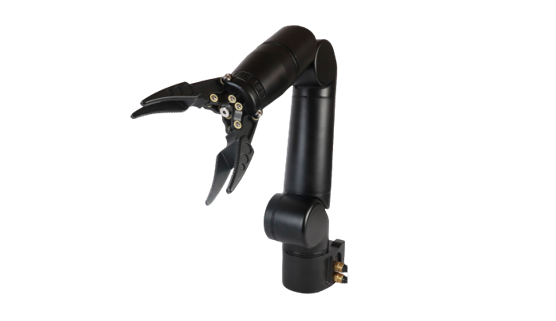

Manipulator
메니퓰레이터

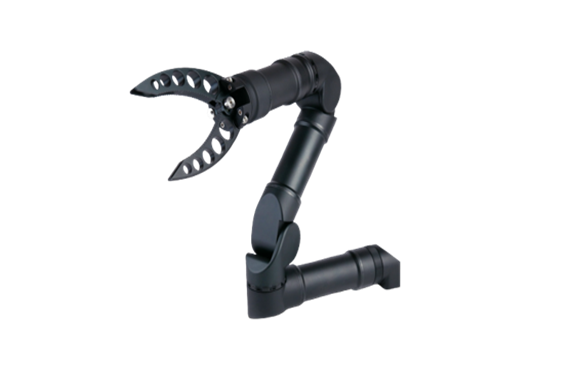

Reach Alpha 5
Max Closing Force : 600N
Lift Capacity : 2kg (Full Reach)
Reach : 0.4m
Weight (Water) : 900g
REACH Bravo 5
DEXTEROUS
- 5-Function (or custom fit)
- Highly Modular & Configurable
RUGGED
- 450m Depth Rating
- 12kg Full Reach Lift
SMART
- In-Built Kinematics
- Master Arm Controlled

DVL
Doppler Velocity Logger

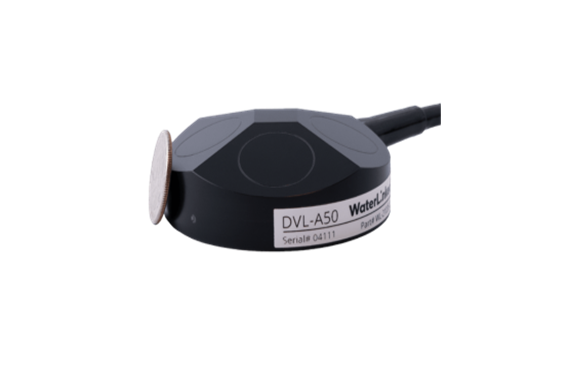

DVL-A50
Frequency : 1MHz
Altitude : 0.05~50m
Velocity : 3.75m/s
Long term accuracy : ±1.01%

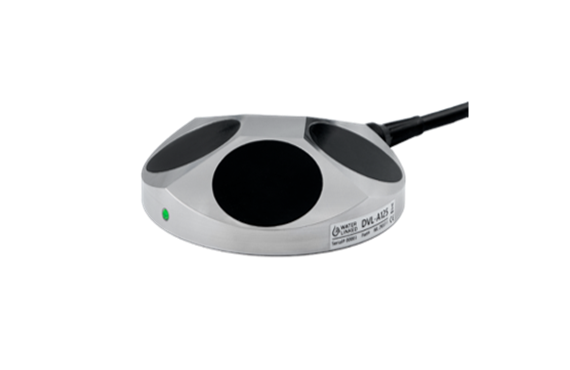

DVL-A125
Frequency : 420kHz
Altitude : 0.05~125m
Velocity : 9.0m/s
Long term accuracy : ±1.01%

CP Probe
방식측정기

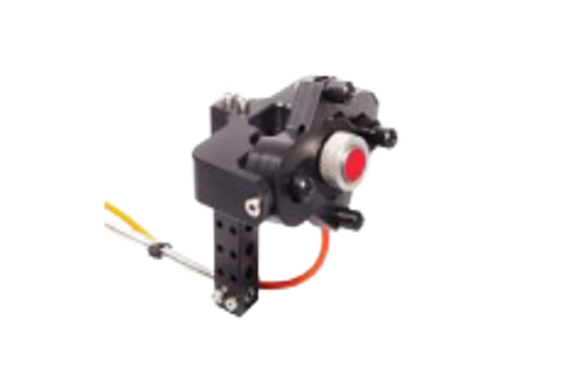

UCP1A contact CP probe
Designed for use with remote voltmeter
Minimum load impedance > 10M Ohms
Weight: 0.5Kg
Size: 126mm x 39mm diameter

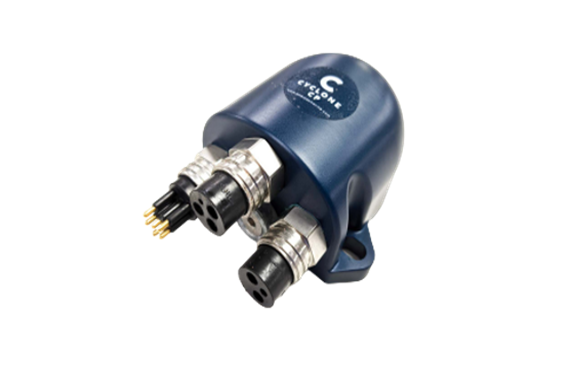

CYCLONE CP
Depth Rating: 500m
Size: 80mm x 92.2mm x 50mm
Weight: 0.52Kg
Measurement Range: +5 to -5V
Update Rate: 1 - 10 Hz
Resolution: 1mV

Underwater
Cleaning Tool
수중클리닝 툴

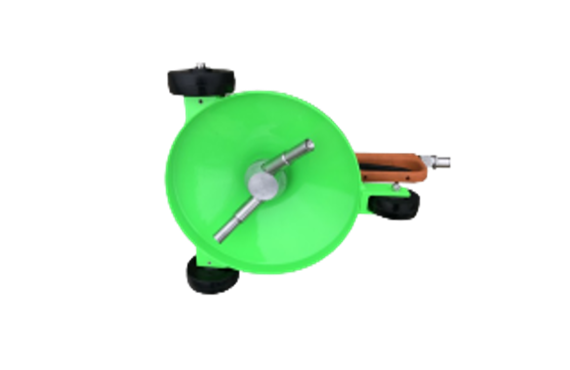

Cavidome
Produce a swirling cavitation flame
Demension : L/W/H 406/381/203mm
Weight : 3.6kg (Air)
Quantity of Nozzles : Two (Rotating)
Cleaning Width :
Light/Med./Heavy 431/406/381mm

UT Prode
초음파 두께 측정기

CYGNUS Mini ROV mountable UTG
Materials : Sound Velocity
(1000m/s, 9995m/s)
Measurement Range (Steel) : 3~250mm (2.25MHz Probe)
Accuracy : ±0.05mm
Resolution : 0.05mm
